Stainless Steel for Marine Applications: Choosing the Right Grade

A boat builder in Greece fitted a new yacht with 304 stainless steel railings and hardware to stay within budget. The parts looked excellent when installed. Six months later, after exposure to salt spray and humid marina air, small rust spots began forming at weld points and crevices. By the end of the first season, the owner faced a choice: replace the railings with 316 stainless steel or commit to ongoing maintenance and polishing.

That story is not unusual. Marine environments are among the most aggressive service conditions for any metal. Saltwater, chloride aerosols, temperature swings, and galvanic coupling can destroy the wrong material quickly. Choosing the right stainless steel for marine applications means understanding which grades resist chloride attack, where 304 falls short, and how fabrication affects long-term performance.

In this guide, Wuxi Yansheng Technology explains the grades, finishes, and specifications that matter for marine use. If you already know what you need, request a quote with your grade, size, and quantity.

Why Marine Environments Attack Stainless Steel

Stainless steel resists corrosion because of a thin chromium oxide layer called the passive film. When intact, this layer protects the base metal from oxygen, moisture, and mild chemicals. Marine environments challenge that protection in several ways.

Chloride Exposure

Seawater contains about 3.5% salt, mostly sodium chloride. Chloride ions penetrate passive films and can initiate pitting or crevice corrosion. The higher the chloride concentration and temperature, the faster attack can begin.

Salt Spray and Humidity

Marine atmospheres carry chloride aerosols far from the shoreline. Components in coastal areas, on decks, or in engine rooms are constantly exposed to salty moisture that settles into crevices and evaporates, concentrating chlorides.

Galvanic Corrosion

When stainless steel contacts aluminum, carbon steel, or other metals in seawater, galvanic cells form. The less noble material corrodes faster. Even within stainless steel assemblies, different grades or surface conditions can create small galvanic couples.

Mechanical Damage

Scratches, weld heat tint, and surface contamination remove or weaken the passive layer. In marine service, damaged areas become the first sites of corrosion unless they are properly cleaned and passivated.

Best Stainless Steel Grades for Marine Applications

Not all stainless steels perform the same in saltwater. The grade determines how well the passive film resists chloride attack.

316 and 316L Stainless Steel

316 stainless steel is the most common choice for marine applications. It contains 2-3% molybdenum, which significantly improves resistance to pitting and crevice corrosion in chloride environments. The low-carbon 316L version is preferred for welded structures because it reduces the risk of sensitization.

For railings, deck hardware, cleats, handrails, fittings, and structural components in saltwater exposure, 316 stainless steel is usually the minimum specification. It is widely available, cost-effective for many applications, and easier to fabricate than higher alloys.

304 Stainless Steel

304 stainless steel has good general corrosion resistance but no molybdenum. In marine environments, it is suitable only for occasional splash exposure, interior fittings, or fully freshwater service. Continuous salt spray, immersion, or crevice conditions will eventually cause pitting in 304.

If your project must use 304 in a marine setting, expect more frequent inspection, cleaning, and replacement. For most exterior marine hardware, 304 is a false economy.

Duplex Stainless Steels

Duplex grades such as 2205 combine austenitic and ferritic microstructures. They offer higher strength and better chloride resistance than 316. Duplex stainless steel is used for marine propeller shafts, pumps, valves, and high-stress hardware in aggressive service.

The higher strength of duplex grades allows thinner sections and lighter designs. However, fabrication requires more care, and availability is more limited than 316.

Super Austenitic and Super Duplex Grades

For the most severe marine environments, such as subsea equipment, desalination plants, and chemical tankers, super austenitic grades like 904L or super duplex grades like 2507 may be required. These alloys contain higher chromium, nickel, molybdenum, and nitrogen levels for maximum pitting resistance.

They are expensive and usually reserved for applications where failure is not an option.

A shipyard in Norway learned this lesson when it used 304 fasteners to secure 316 deck plates. The fasteners corroded within two years, while the plates remained sound. Replacing the fasteners with 316 and adding isolation washers solved the problem, but the rework cost far more than specifying the right grade from the start.

304 vs 316 Stainless Steel for Marine Use

The 304 vs 316 stainless steel comparison is especially important in marine work. The two grades look identical but behave very differently in saltwater.

For most marine applications, 316 or 316L is the safer choice. The additional cost is usually recovered through longer service life and lower maintenance.

How Surface Finish Affects Marine Performance

Surface condition matters almost as much as grade in marine environments. A rough or contaminated surface provides more sites for corrosion to begin.

Mill Finish and Pickling

As-delivered 2B or No. 1 mill finishes may carry surface contaminants, embedded iron, or scale from processing. For marine hardware, pickled and passivated surfaces perform better because pickling removes contaminants and passivation rebuilds the passive film.

Polished Surfaces

Smooth, polished surfaces are easier to clean and have fewer crevices where chlorides can concentrate. Mirror or fine-brushed finishes often outperform rough surfaces in salt spray conditions.

Weld Finish

Welding creates heat tint and oxide scale in the heat-affected zone. In marine service, welds must be cleaned and passivated. Some critical applications require full weld grinding and polishing to restore corrosion resistance.

Our custom processing services include cutting, polishing, pickling, and passivation to prepare materials for demanding environments.

Common Marine Applications for Stainless Steel

Stainless steel is used throughout marine construction and equipment. The right grade depends on the exposure level and mechanical demands.

Deck Hardware and Railings

Railings, stanchions, cleats, and handrails see constant salt spray and handling. 316 stainless steel is the standard for these visible, high-touch components.

Hull and Structural Fittings

Bolts, brackets, hinges, and structural connectors benefit from 316 or duplex grades. Higher strength requirements may justify duplex or precipitation-hardening grades.

Piping and Fluid Systems

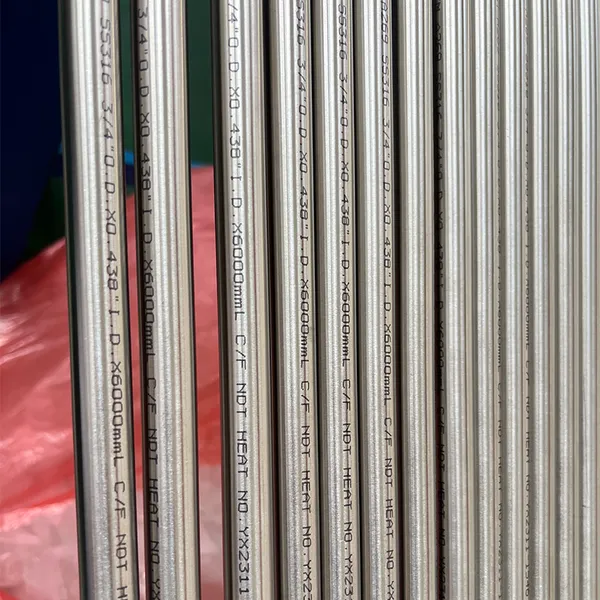

Seawater cooling pipes, bilge systems, and sanitary piping often use 316 stainless steel pipe. For high-pressure or high-chloride service, duplex or super duplex pipe may be specified.

Propeller Shafts and Propulsion Components

Propeller shafts require high strength and excellent corrosion fatigue resistance. Duplex stainless steels are common in this application.

Tanks and Pressure Vessels

Fuel tanks, water tanks, and ballast tanks in marine vessels may use 316 or duplex grades depending on the fluid and inspection requirements.

Specifying Stainless Steel for Marine Projects

Clear specifications prevent costly mistakes. When ordering stainless steel for marine applications, include the following details.

Grade and Standard

Specify the grade clearly, including whether 316, 316L, duplex, or another alloy is required. Reference standards such as ASTM A240 for plate and sheet, ASTM A276 for bars, or ASTM A312 for pipe.

You can view the ASTM A240 standard for detailed requirements on flat-rolled stainless steel.

Surface Finish

Define the required surface condition. For marine hardware, specify pickled and passivated surfaces. For visible components, specify the polish or brush finish required.

Heat Treatment

Some grades require specific heat treatment to achieve corrosion resistance and mechanical properties. Confirm that the supplier can provide material in the correct condition.

Certification

Request mill test certificates showing chemical composition, mechanical properties, and heat number. For critical marine components, third-party inspection by agencies such as SGS, BV, or Lloyd's Register adds confidence.

Our quality assurance team verifies standard compliance and provides traceable documentation with shipments.

Common Mistakes When Using Stainless Steel in Marine Environments

Even with the right grade, poor specification or fabrication can lead to premature failure.

• Using 304 where 316 is required

• Leaving weld heat tint and scale in place

• Skipping passivation after fabrication

• Creating crevices where water and salt collect

• Mixing dissimilar metals without isolation

• Ignoring galvanic corrosion risks with aluminum or carbon steel

• Selecting finish based only on appearance

• Failing to inspect and clean surfaces regularly

A marina operator in Florida installed 316 stainless steel gates with carbon steel hinges to save money. Within one year, the hinges rusted severely and stained the surrounding 316 frames. The dissimilar metal contact created a galvanic cell that accelerated corrosion. Replacing the hinges with 316 and adding isolation washers stopped the problem.

Fabrication Tips for Marine Stainless Steel

Proper fabrication extends the life of marine stainless steel components.

Cutting and Machining

Use clean cutting tools dedicated to stainless steel. Cross-contamination from carbon steel tooling can embed free iron particles that later rust on the surface.

Welding

Use 316L filler metal when welding 316 base metal. Keep heat input controlled to minimize sensitization. Clean welds thoroughly after welding.

Passivation

After fabrication, passivate components in a nitric or citric acid solution to restore the passive film. This step is especially important for welded assemblies.

Handling and Storage

Store stainless steel indoors or under cover before installation. Avoid contact with carbon steel, dirty rags, or chlorinated cleaners. Use clean lifting straps to prevent surface contamination.

Maintenance Tips for Marine Stainless Steel

Even 316 stainless steel benefits from regular care in marine service. Fresh water rinsing after saltwater exposure removes chloride residues and extends service life. Pay attention to crevices, fasteners, and weld areas where chlorides tend to accumulate.

Avoid abrasive pads that can embed carbon steel particles. Instead, use brushes and cleaners designated for stainless steel. Inspect hardware annually for pitting, staining, or loose fasteners, and address problems before they spread.

Sourcing Marine Stainless Steel from China

International buyers often source stainless steel for marine applications from Chinese mills and distributors. The key is to verify that the material meets the specified grade and standard.

Wuxi Yansheng Technology supplies 304, 316, 316L, and other stainless steel grades through authorized partnerships with TISCO, Baosteel, JISCO, and Dongfang Special Steel. We provide stainless steel sheet and coil, stainless steel pipe, and custom-processed parts for marine and industrial applications.

When sourcing from China, request mill test certificates, confirm the standard, and request samples for visible or critical components. For more guidance on sourcing, see our article on sourcing steel from China.

Conclusion

Marine environments demand more from stainless steel than almost any other application. Salt, chlorides, humidity, and galvanic coupling can destroy the wrong grade quickly. Choosing the right stainless steel for marine applications means selecting a grade with enough molybdenum and chromium, specifying the correct surface finish, and ensuring proper fabrication and passivation.

Key takeaways:

• Use 316 or 316L stainless steel as the minimum grade for saltwater exposure

• Limit 304 stainless steel to interior or occasional splash applications

• Consider duplex grades for high-strength or severe chloride service

• Specify pickled and passivated surfaces, especially after welding

• Avoid galvanic contact with aluminum, carbon steel, or lower alloys

• Request mill test certificates and third-party inspection when needed

• Reference ASTM A240 or the relevant marine standard when ordering
